Outdoor P8 led screen

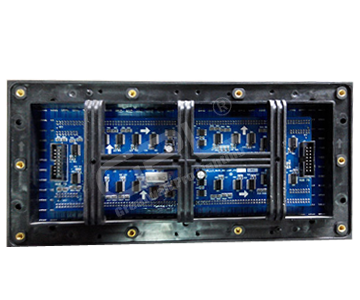

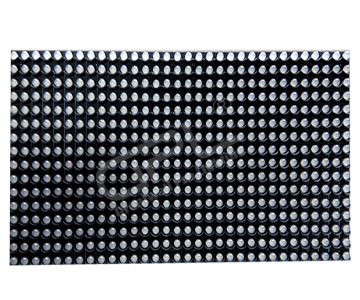

Product model:  P8 Full Color Led Module

Module size: 256mm*128mm

Pixel pitch: 8mm

Pixel density: 15625dots/m2

Pixel configuration: 1R1G1B 3 in 1

Module resolution;32dots(W)*16dots(H)

Maximum power consumption:25W

Module thickness:2.8cm

Module weight:0.55kg

Driving method :Constant current driving

Scan mode :1/4 scan

Interface type:HUB75B

Brightness: ≥7500cd/m2

The specifications of cabinet

Cabinet size:768mm x 768mm

Module quantity:18pcs

Power supply :5V/40A 5V/60A

Cabinet resolution :96*96dots

Optimal viewing distance:8m~50m

Optimal viewing angle:160°(W) 120°(H)

Temperature Storage: -35℃~+85℃

Working :-20℃~+50℃

System operating humility:10%-95%

The specifications of power supply

Operating voltage: AC220V±10%

Average power consumption: 300W/H

Maximum power consumption:  ≤600W/㎡

Current: ≤20mA(single LED)

The specifications of control system

Computer: Pentium4 or above

Operating system: WIN98/2000/NT/XP

Control model: Synchronization with PC

The specifications of the main technical parameters

Driving device: Constant current driving

Refresh rate:≥600Hz

Grey scale:RGB each 256 grade, can display 16.7M colors)


Power switch:Automatic Switch

Display mode:800*600/1024*768/1280*900
