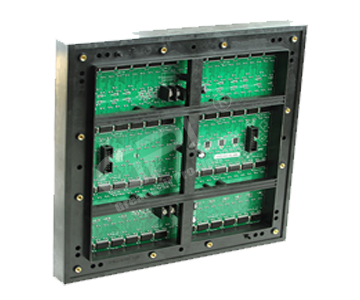

Product model : P16 full color module

Module size : 256mm*256mm

Pixel pitch:  16mm

Pixel density: 3906dots/m2

Pixel configuration: 1R1G1B

Module resolution: 16dots(W)*16dots(H)

Maximum power consumption : 35W

Module thickness: 3.3cm

Module weight: 1kg

Driving method : Constant current driving

Scan mode: Static Scan

Interface type:  HUB40

Brightness: ≥7500cd/m2

The specifications of cabinet

Cabinet size: 1024mm*1024mm

Module quantity：16pcs

Power supply ：5V/40A 5V/60A

Cabinet resolution：64*64dots

Optimal viewing distance：10m～50m

Optimal viewing angle：160°(W) 120°(H)

Temperature Storage: -35℃～+85℃

Working: -20℃～+50℃

System operating humility：10%-95%

The specifications of power supply

Operating voltage： AC220V±10%

Average power consumption： 350W/H

Maximum power consumption：≤800W/㎡

Current：≤20mA(single LED)

The specifications of control system

Computer：Pentium4 or above

Operating system： WIN98/2000/NT/XP

Control model ：Synchronization control

The specifications of the main technical parameters

Driving device： Constant current driving

Refresh rate： ≥600Hz

Grey scale：RGB each 256 grade, can display 16.7M colors)

MTBF： ≥9000hours

Power switch ：Automatic switch

Display mode ：800*600/1024*768/1280*900
