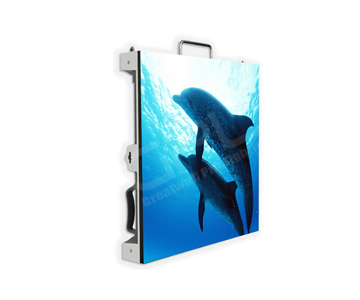

Indoor led screen P3 module



Product model: P3-16S

Module size: 192mm*96mm

Pixel pitch : 3mm

Pixel density: 111111dots/m2

Pixel configuration: smd 3in1

Module resolution: 64dots(W)*32dots(H)

Maximum power consumption:  18W

Module thickness: 14.75mm

Module weight: 0.16kgs

Driving method: Constant current driving

Scan mode: 1/16 scan

Interface type:  HUB75-A

Brightness: ≥1500cd/m2

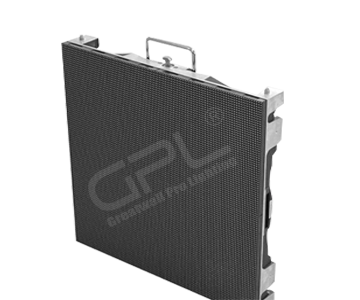

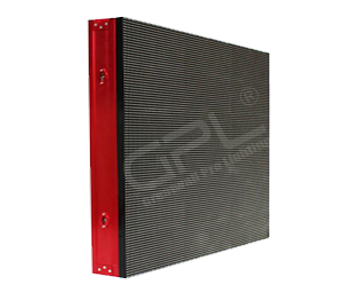

The specifications of cabinet

Cabinet size: 576mm*576mm

Module quantity: 18pcs

Power supply: 5V/40A *3pcs

Cabinet resolution: 192*192dots

Optimal viewing distance: 3m~20m

Optimal viewing angle: 160°(W) 120°(H)

Temperature "Storage: -35℃~+85℃

Working: -20℃~+50℃"

System operating humility: 10%-95%

The specifications of power supply

Operating voltage: AC220V±10%

Average power consumption: 180W/㎡

Maximum power consumption: ≤360W/㎡

Current: ≤20mA(single LED)

The specifications of control system

Computer: Pentium4 or above

Operating system: WIN98/2000/NT/XP

Control model: Synchronization control

The specifications of the main technical parameters

Driving device :Constant current driving

Refresh rate: ≥400Hz

Grey scale: RGB each 256 grade, can display 16.7M colors

MTBF: ≥9000hours

Power switch: Automatic switch

Display mode: 800*600/1024*768
