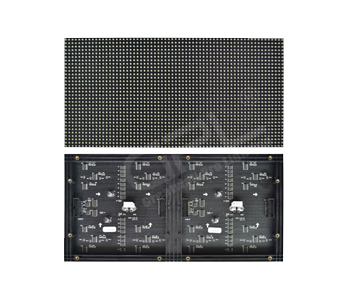

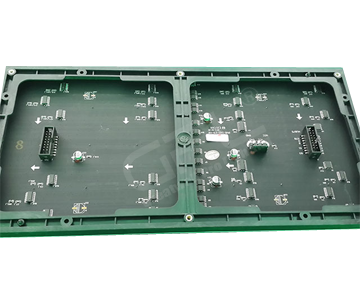

Product model:P5-16S\P5-8S

Module size:320mm*160mm\160mm*160mm

Pixel pitch:5mm

 Pixel density:40000dots/m2

Pixel configuration:smd 3in1

Module resolution：32dots(W)*32dots(H)

Maximum power consumption:25W\20W

Module thickness:14.27mm

Module weight:0.21kg

Driving method:Constant current driving

Scan mode:1/16 scan\1/8 scan

Interface type:HUB75-A

Brightness:≥1600cd/m2\≥2800cd/m2

The specifications of cabinet

Cabinet size:640mm*640mm

Module quantity:16pcs

Power supply:5V/40A *2pcs

Cabinet resolution:128*128dots

Optimal viewing distance:5m～30m

Optimal viewing angle;160°(W) 120°(H)

Temperature:Storage:-35℃～+85℃

                     Working:-20℃～+50℃

System operating humility:10%-95%

The specifications of power supply

Operating voltage:AC220V±10%

 Average power consumption:1180W/㎡270W/㎡

Maximum power consumption:≤500W/㎡≤800W/㎡

Current:≤20mA(single LED)

The specifications of control system

Computer:Pentium4 or above

Operating system:WIN98/2000/NT/XP

Control model:Synchronization control

The specifications of the main technical parameters

Driving device:Constant current driving

Refresh rate:≥400Hz

Grey scale：RGB each 256 grade, can display 16.7M colors)

 MTBF：≥9000hours

Power switch：Automatic switch

Display mode：800*600/1024*768
