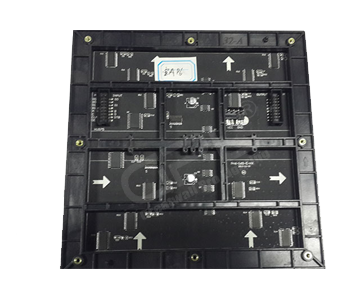

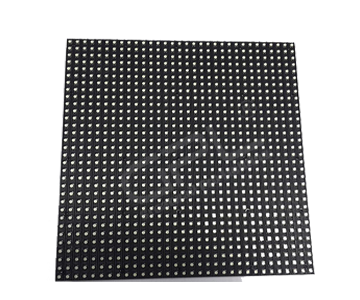

Indoor led screen P6 module

    GPL-SP06™

SPECIFICATIONS

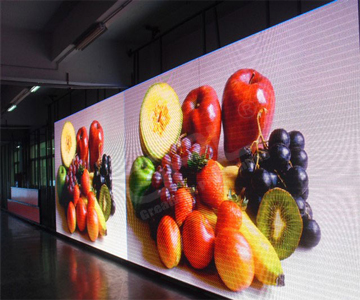

EFFECT PICTURE
VIDEO
ACCESSORIES

Product model:P6-4S\P6-8S

Module size:192mm*96mm

Pixel pitch:6mm

Pixel density:27777dots/m2

Pixel configuration:smd 3in1

Module resolution:32dots(W)*16dots(H)

Maximum power consumption:15W\12W

Module thickness:14.85mm

Module weight:0.154kg

Driving method:Constant current driving

Scan mode:1/4 scan\1/8 scan

Interface type:HUB75-A

Brightness:3000cd/m2\2200cd/m2

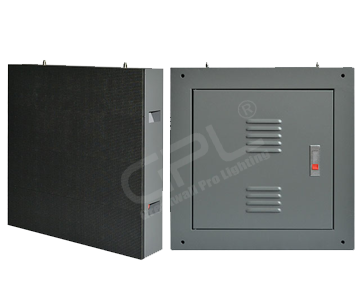

The specifications of cabinet

Cabinet size:576mm*576mm

Module quantity:18pcs

Power supply:5V/40A *2pcs

Cabinet resolution:96*96dots

Optimal viewing distance:6m40m

Optimal viewing angle:160°(W) 120°(H)

Temperature:Storage:-35℃~+85
           Working:-20℃~+50

System operating humility:10%-95%

 The specifications of power supply

Operating voltage:AC220V±10%

Average power consumption:270W/\220W/

Maximum power consumption:810W/\3650W/

Current:20mA(single LED)

The specifications of control system

Computer:Pentium4 or above

Operating system:WIN98/2000/NT/XP

Control model:Synchronization control

 The specifications of the main technical parameters

Driving device:Constant current driving

Refresh rate:400Hz

Grey scale:RGB each 256 grade, can display 16.7M colors)

MTBF:9000hours

Power switch:Automatic switch

Display mode:800*600/1024*768
