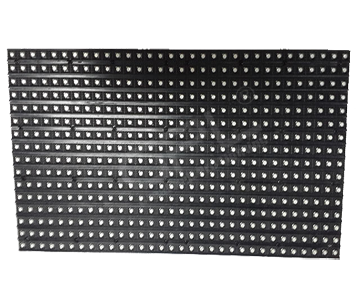

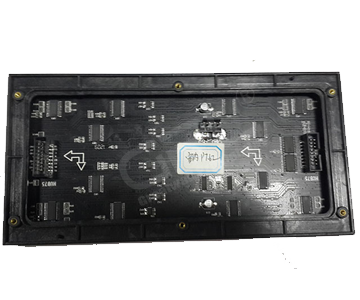

Product model:P7.62-8S

Module size:244mm*244mm

Pixel pitch:7.62mm

Pixel density:17222dots/m2

Pixel configuration:smd 3in1

Module resolution:32dots(W)*16dots(H)

Maximum power consumption:150W

Module thickness:15mm

Module weight:0.45kg

Driving method:Constant current driving

Scan mode:1/8 scan

Interface type:HUB75

Brightness:≥1700cd/m2

The specifications of cabinet

Cabinet size:976mm*976mm

Module quantity:16pcs

Power supply:5V/40A *2pcs

Cabinet resolution:128*128dots

Optimal viewing distance:8m～50m

Optimal viewing angle:160°(W) 120°(H)

Temperature: Storage:-35℃～+85℃

                          Working:-20℃～+50℃

System operating humility:10%-95%

The specifications of power supply

Operating voltage：AC220V±10%

Average power consumption：280W/㎡

Maximum power consumption：≤400W/㎡

Current：≤20mA(single LED)

The specifications of control system

Computer：Pentium4 or above

Operating system：WIN98/2000/NT/XP

Control model：Synchronization control

The specifications of the main technical parameters

Driving device：Constant current driving

Refresh rate：≥400Hz

Grey scale：RGB each 256 grade, can display 16.7M colors)

MTBF：≥9000hours

Power switch：Automatic switch

Display mode：800*600/1024*768
